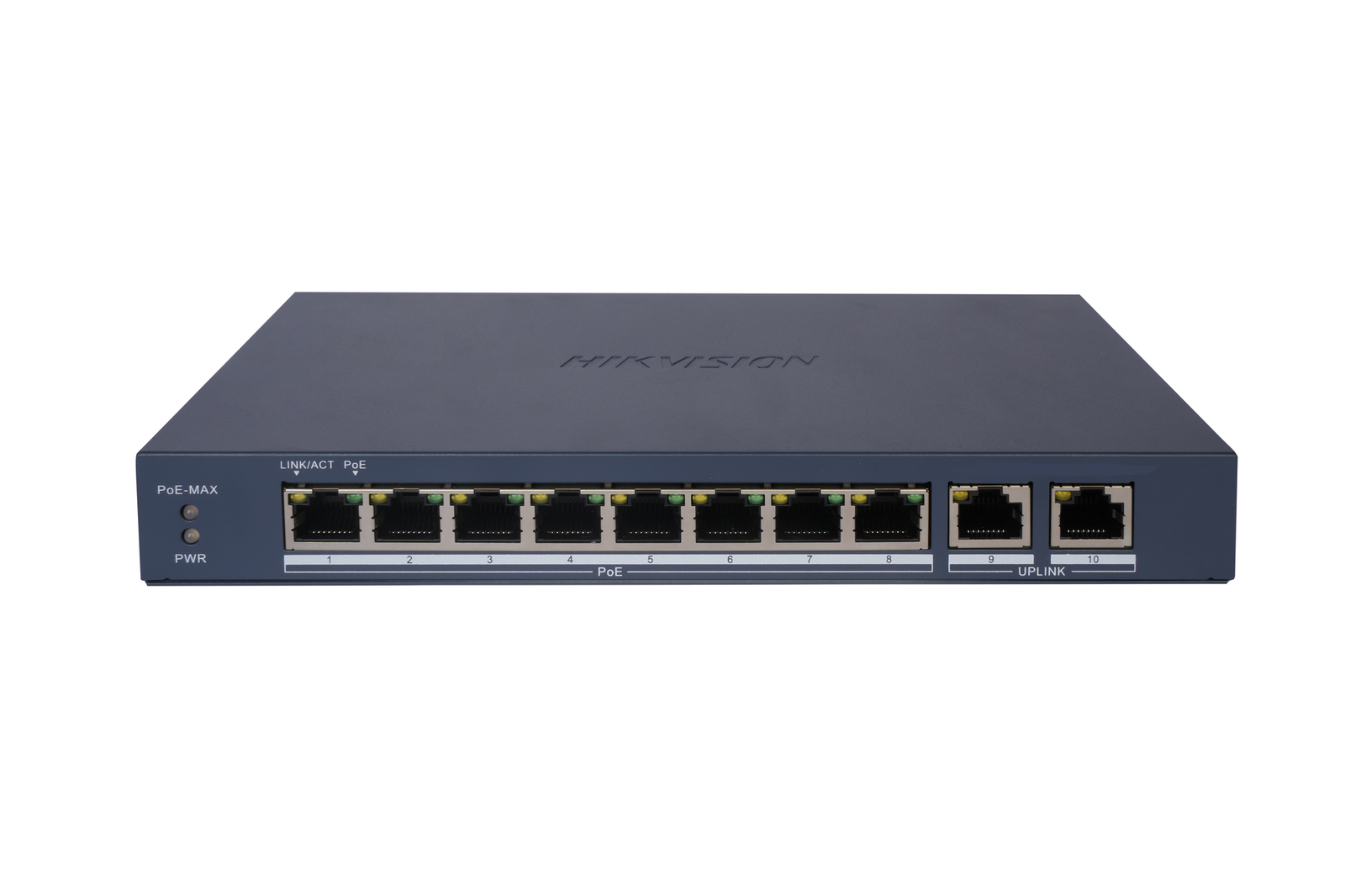

10 prievadų, 8 PoE komutatorius Hikvision DS-3E1510P-EI/M(B)
7,88€ / 12 mėn.
76,63€(Kaina be PVM)92,72€(Kaina su PVM)
| 8 × Gigabit PoE prievadai, 2 × Gigabit RJ45 prievadai | |
| Bendra PoE galia: 80 W | |
| Palaiko 802.1Q VLAN | |
| PoE stebėjimas – automatiškai aptinka ir paleidžia iš naujo nereaguojančias kameras | |
| Palaiko STP/RSTP kilpų prevenciją | |
| Palaiko kabelių gedimų lokalizavimą | |
| Ilgo nuotolio PoE perdavimas iki 300 m | |
| 6KV apsauga nuo viršįtampių |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Patvirtinimai
| Cheminių komponentų sertifikavimas | Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU) |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Saugumas | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
Bendrieji duomenys
| Dydis | 217.6 mm × 27.6 mm × 108.5 mm (8.57” × 1.09” × 4.27”) |
| Bendras svoris | 1.08 kg (2.38 lb) |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Maks. energijos suvartojimas | 86 W |
| Grynas svoris | 0.54 kg (1.19 lb) |
| Darbo drėgnumas | 5% to 95% (no condensation) |
| Darbo temperatūra | 0 °C to 40 °C (32 °F to 104 °F) |
| Energijos sunaudojimas miego režime | 2.5 W |
| Energijos šaltinis | 54VDC, 1.6A |
| Santykinė drėgmė | 5% to 95% (no condensation) |
| Rėmas | Metal material |
| Laikymo temperatūra | -40 °C to 85 °C (-40 °F to 185 °F) |
| Apsauga nuo viršįtampio | 6 KV |
Tinklo parametrai
| Vidinė cache atmintis | 1.5 Mbits |
| MAC adresų lentelė | 4 K |
| Paketų persiuntimo greitis | 14.88 Mpps |
| Jungtys | 8 × Gigabit PoE port,2 × Gigabit RJ45 port |
| Perjungimo talpa | 20 Gbps |
PoE
| Maks. PoE prievadų galia | 30 W |
| PoE prievadas | PoE: Ports 1 to 8 |
| PoE galios biudžetas | 80 W |
| PoE galios jungtis | End-span: 1/2(-), 3/6(+) |
| PoE standartas | IEEE 802.3af,IEEE 802.3at |
Programinės įrangos funkcijos
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported:1. Display the port rate.2. Display the port bandwidth utilization rate.3. Display the PoE power usage.4. Display topology information.5. Display the alarm status.6. Restart ports and devices.7. Enable port long-rage mode.8. Remotely upgrade the device. |
| Ryšių sujungimas | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.Support static link aggregation.Support 3 aggregation groups. |
| Ilgo diapazono režimas | Ports 1 to 8: up to 300 m.Long range performance may vary depend on camera model or cable condition. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.Support 802.1D STP.Suppport 802.1w RSTP. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| Prievado izoliacija | Ports 1 to 8: port isolation mode to improve network securityPorts in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| System Maintenance | Support device management via web.Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.Support management via Hik-Central Pro.Support remote management via Hik-Partner Pro.Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.Supports 802.1ab LLDP for peer device discovery.Support port mirroring for fault locating. |
| VLAN | VLAN is used for network scale planning and network health improvement.Support 802.1Q.Configurable VLAN ID from 1-4094.Support Trunk, Access port mode.Support Max. 32 VLAN. |
| Svoris | 0,904 kg |
|---|---|
