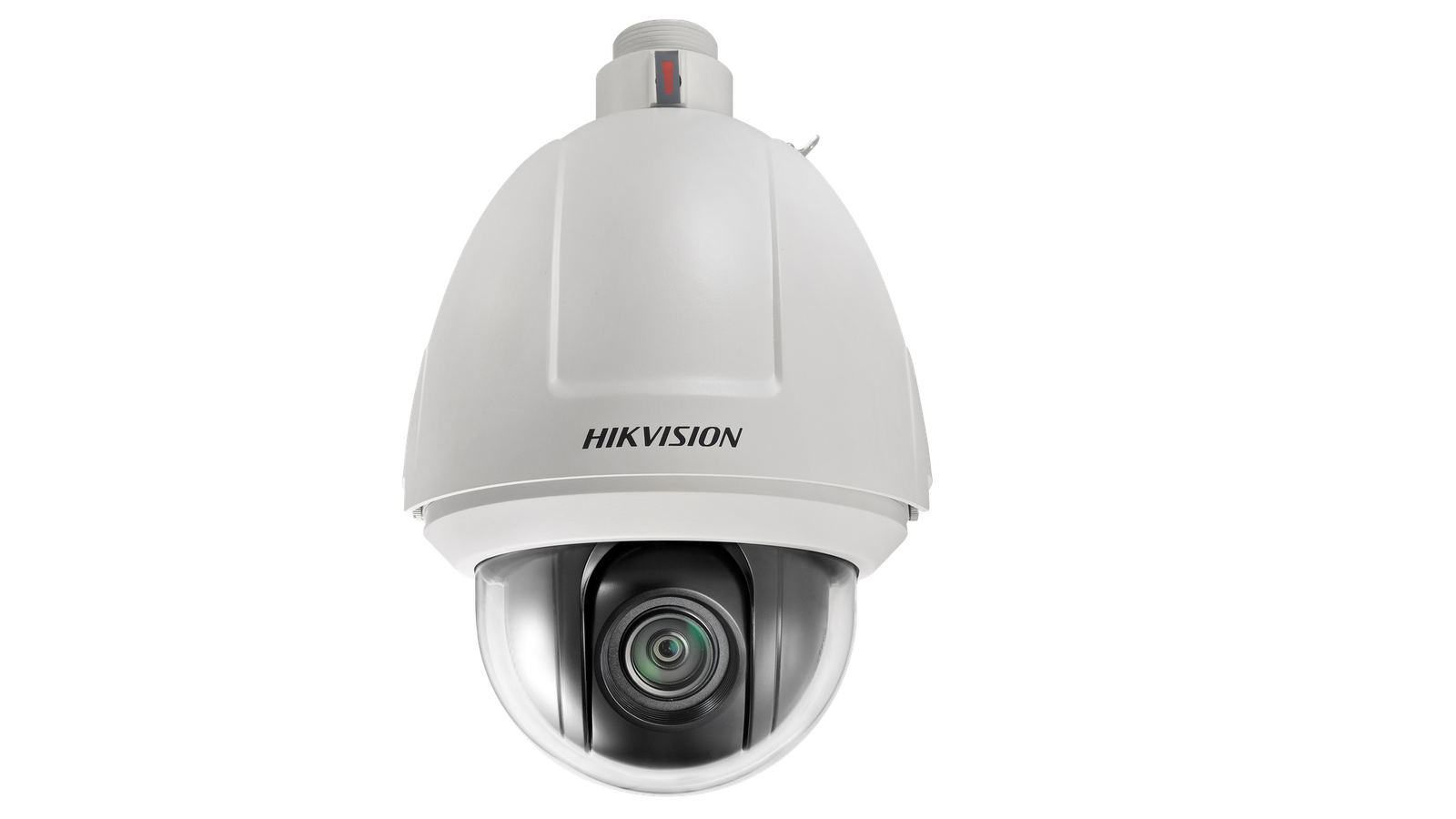

Hikvision PTZ DS-2DF5232X-AEL(T5)

Preliminari mėnesinė įmoka nuo 59,02€ / 60 mėn.

1.779,80€(Kaina be PVM)2.153,56€(Kaina su PVM)

1/2.8″ progressive scan CMOS
2MP kamera
Dark fighter technologija
Funkcija: Automatinis sekimas 2.0
32× optinis 16× skaitmeninis priartinimas suteikia galimybę iš arti matyti plačias sritis
120 dB WDR, 3D DNR, HLC
IP66, IK08

Neturime

Gamintojas: Hikvision SKU: KIPDS2DF5232XAELT5

Sensorius	1/2.8″ progressive scan CMOS
Maks. rezoliucija	1920 × 1080
Min. apšvietimas	Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
Užrakto greitis	1 to 1/30,000 s
Day & Night	IR cut filter
Priartinimas	32 × optical, 16 × digital

FOV	4.8 mm to 153 mm
FOV	Horizontal field of view: 58.4° to 2.14° (wide-tele) Vertical field of view: 33.8° to 1.2° (wide-tele) Diagonal field of view: 65.6° to 2.46° (wide-tele)
Fokusavimas	Auto, semi-auto, manual
Diafragama	Max. F1.2
Priartinimo greitis	Approx. 5.6 s (optical lens, wide tele)

Movement Range (Pan)	360°
Movement Range (Tilt)	-5° to 90° (auto flip)
Pan greitis	Pan speed: configurable from 0.1° to 300°/s; preset speed: 540°/s
Tilt greitis	Tilt speed: configurable from 0.1° to 240°/s, preset speed 400°/s
Proporcingas Pan	Yes
Iš anksto išsaugoti nustatymai	300
Išsaugotų nustatymų sustabdymas	Yes
Patruliavimas	8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas	4 pattern scans, record time over 10 minutes for each scan
Park Action	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
3D pozicija	Yes
PTZ būsenos vaizdavimas	Yes
Užduočių grafikas	Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Išjungimo atmintis	Yes

Pagrindinis srautas	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Antrinis srautas	50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo suspaudimas	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
H.264 tipas	Baseline profile, main profile, high profile
H.265 tipas	Main profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	8 fixed regions for each stream

Garso suspaudimas

G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM

Protokolai	IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator, and user
Saugumas	Password protection, complicated password, HTTPS encryption, 802.1X authentication, watermark, IP address filter, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Klientas	iVMS-4200, HikCentral, Hik-Connect
Naršyklė	IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+

Nuotraukos nustatymai	Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR)	120 dB
Rūko šalinimas	Optical defog
Vaizdo stabilizavimas	EIS
Nuotraukų pagražinimas	BLC, HLC, 3D DNR
Privatumo kaukė	24 programmable polygon privacy masks, mask color or mosaic configurable
Regioninis fokusavimas	Yes
Regioninė ekspozicija	Yes

Interneto sąsaja	1 RJ45 10M/100M self-adaptive Ethernet port
Saugyklos vieta	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Garsas	1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Signalizacija	7 inputs, 2 outputs
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Pagrindinės funkcijos	Motion detection, video tampering alarm, exception, alarm input and output
Išmaniosios funkcijos	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Sąsaja	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
Išmanus sekimas	Manual tracking, auto-tracking

Veido atpažinimas

Detects up to 30 faces simultaneously.

Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture

Kelių eismo funkcijos

Supports vehicle detection

Sistemos parametrai	24 VAC, 3.0 A, 50/60Hz (Max. 60 W, including max. 40 W for heater), Hi-PoE, 42.5 to 57 V, 1.41 A (Max. 40 W, including max. 20 W for heater)
Dydis	Ø 220 mm × 302 mm (Ø 8.66″ × 11.89″)
Svoris	Approx. 4 kg (8.82 lb.)
Darbo sąlygos	-40°C to 70°C (-40°F to 158°F). Humidity 95% or less (non-condensing)
Kalba	32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

EMC	FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Saugumas	UL (UL 62368-1) CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
Aplinkosauga	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Apsauga	IP66 (IEC 60529-2013), IK10 (IEC 62262:2002), Standard,Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5
