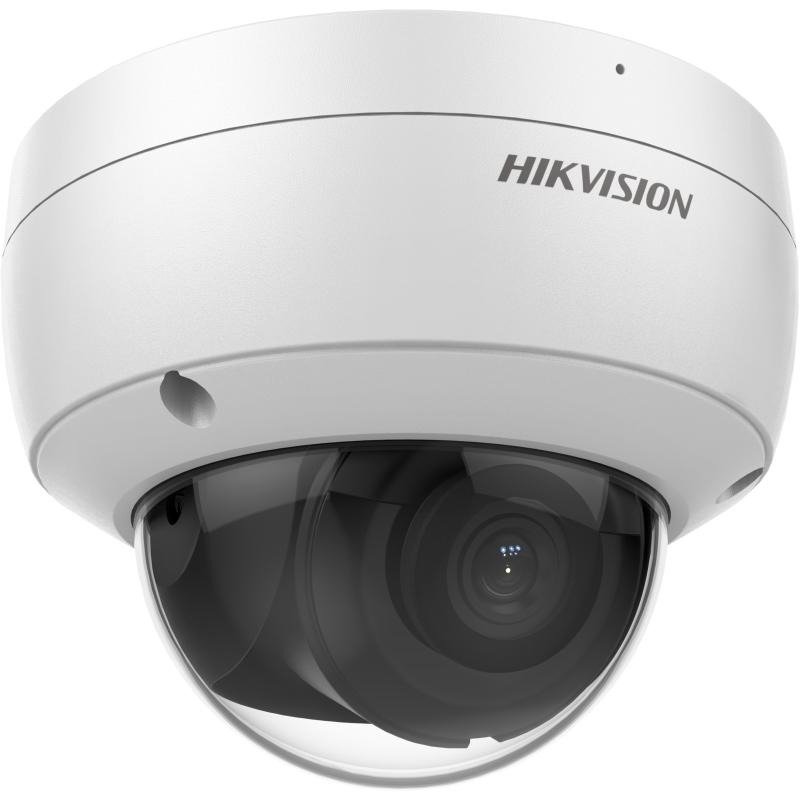

Hikvision dome DS-2CD2166G2-I(C) F4 (balta, 6 MP, 30 m. IR, AcuSense, DarkFighter)
10,92€ / 36 mėn.
233,98€(Kaina be PVM)283,12€(Kaina su PVM)
| Tipas: IP kamera | |
| Modelis: DS-2CD2166G2-I(C) F4 | |
| Korpusas: Dome | |
| Technologija: AcuSense powered by DarkFighter | |
| WDR: 120 dB | |
| Prekės ženklas: Hikvision | |
| Serija: EasyIP 2.0plus | |
| Kompresija: H.265+/H.264+ | |
| Raiška: 6MP | |
| Objektyvas: 4mm (78°) | |
| IR pašvietimas: Iki 30m | |
| Atsparumo klasė: IP67 | |
| SD kortelės palaikymas: Iki 128GB | |
| Maitinimas: PoE |
Neturime
Kamera
| Sensorius | 1/2.4″ Progressive Scan CMOS |
| Maks. rezoliucija | 3200 × 1800 |
| Min. apšvietimas | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Kampo keitimas | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°; 4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° |
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragama | F1.6 |
DORI
| DORI | 2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m; 4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m |
Apšvietimas
| Papildomo apšviešimo tipas | IR |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850 nm |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360) |
| Trečias srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 (*Third stream is supported under certain settings.) |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region(s) for main stream and sub-stream |
Garsas
| Garso tipas | -U: Mono sound |
| Garso suspaudimas | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso bitų greitis | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Garso atrankos dažnis | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Pašalinių garsų šalinimas | -U: Yes |
Internetas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets, SRTP, SFTP |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK, ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Klientas | iVMS-4200,Hik-Connect,Hik-Central |
| Naršyklė | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Nuotrauka
| Nuotraukos parametrų keitiklis | Yes |
| Nuotraukos nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Diena/Naktis režimas | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
| Privatumo kaukė | 4 programmable polygon privacy masks |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Įmontuotas mikrofonas | -U: Yes |
| Garsas | -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Signalizacija | -S: 1 input, 1 output (TTL: max. 12 VDC, 30 mA) |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception, alarm input and output (-S) |
| Išmaniosios funkcijos | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection |
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output (-S), audible warning (-S) |
Išmaniosios funkcijos
| Veido atpažinimas | Yes |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.5 W |
| Medžiaga | Aluminum alloy body, bubble: plastic |
| Dydis | Ø121.4 mm × 92.2 mm (Ø4.8″ × 3.6″) |
| Pakuotės dydis | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Svoris | Approx. 440 g (1.0 lb.) |
| Svoris su įpakavimu | Approx. 670 g (1.47 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-flicker |
Patvirtinimai
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015 |
| Saugumas | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
