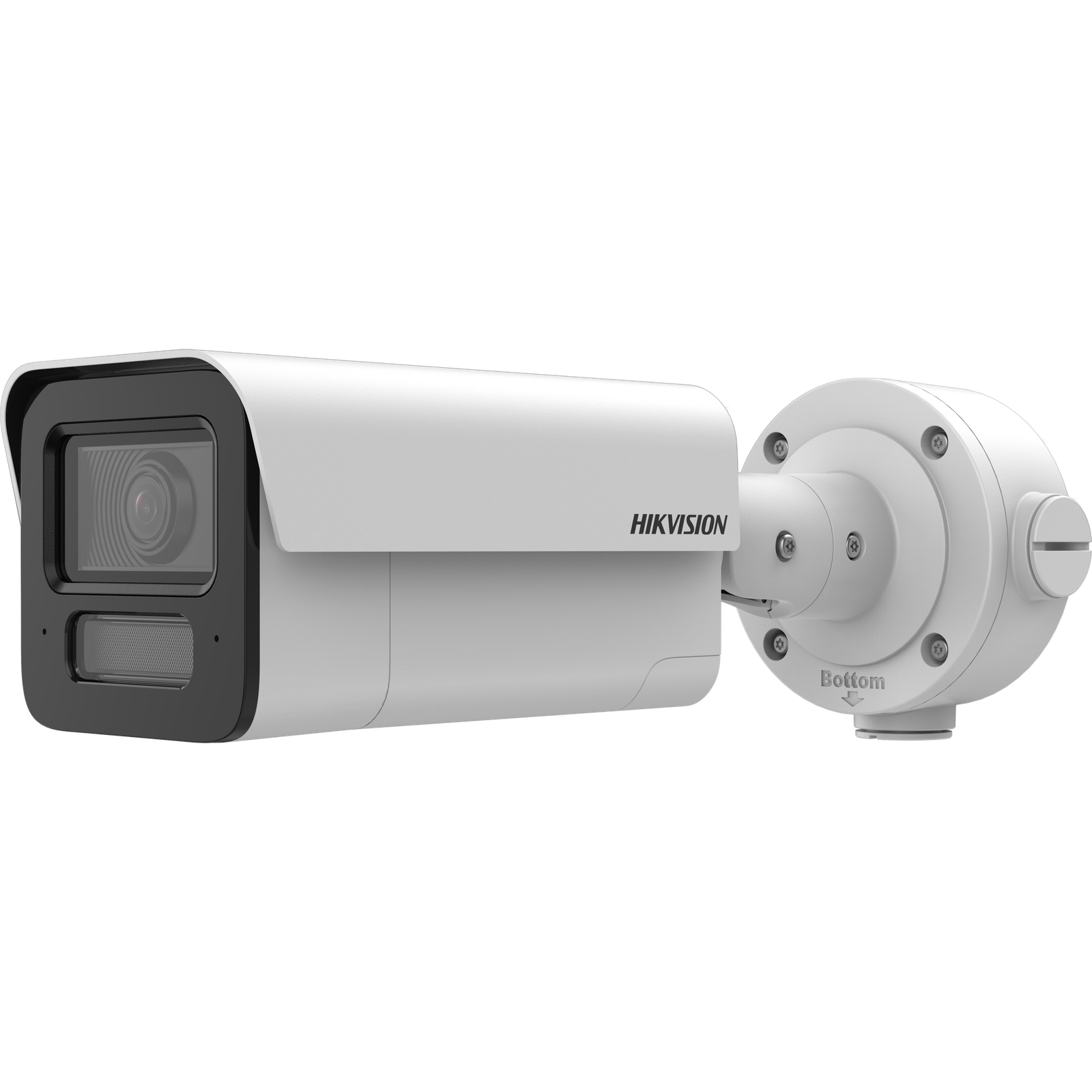

Hikvision Bullet iDS-2CD5T47G2/V-XHSY F2.8 (4MP, IR+LED 80m, DarkFighter 2.0, Perimetro apsaugai)
22,47€ / 60 mėn.
679,62€(Kaina be PVM)822,34€(Kaina su PVM)
| „Guanlan AI” didelio masto dirbtinio intelekto modelis skirtas perimetro apsaugai, sumažina klaidingų įspėjimų skaičių iki 90% | |
| Aukštos kokybės vaizdas su 4 MP raiška | |
| Puikus našumas esant prastam apšvietimui su DarkFighter2.0 technologija | |
| Efektyvi H.265+ glaudinimo technologija taupo pralaidumą ir saugyklą | |
| VCA analitika nakties metu veikia iki 60 m, diena iki 60 m | |
| Atsparumas vandeniui ir dulkėms (IP67), smūgiams (IK10) ir antikorozinis padengimas | |
| Integruotas kameros lešio šildytuvas aiškiam vaizdui snieguotu oru | |
| Komplekte yra bazė |
Turime
Patvirtinimai
| Apsauga nuo korozijos | -Y: NEMA 4X (NEMA 250-2018) |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Saugumas | CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,LOA: IEC/EN 60950-1 |
Garsas
| Garso bitų dažnis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/48 kHz |
| Garso tipas | Mono sound |
| Pašalinių garsų šalinimas | Yes |
Camera
| Diena&Naktis | IR cut filter,Blue glass module (less ghost phenomenon) |
| Vaizdo jutiklis | 1/1.8″ Progressive Scan CMOS |
| Didžiausia raiška | 2688 × 1520 |
| Minimalus apšvietimas | Color: 0.0014 Lux @ (F1.0, AGC ON),B/W: 0.0005 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR,0 Lux with light |
| Užrakto greitis | 1 s to 1/100,000 s |
DORI
| DORI | 2.8 mm, D (Detect): 61 m, O (Observe): 24 m, R (Recognize): 12 m, I (Identify): 6 m4 mm, D (Detect): 75 m, O (Observe): 30 m, R (Recognize): 15 m, I (Identify): 7 mThe DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard. |
Išmaniosios funkcijos
| Meta duomenys | Intrusion detection,line crossing detection,region entrance detection,region exiting detection |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggeringDedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI camerasVCA range:4 mm models: 5 m to 80 m (daytime), 5 m to 60 m (nighttime)2.8 mm models: 3 m to 70 m (daytime), 3 m to 50 m (nighttime)*Result based on standard setup and test environment |
Funkcijos
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error) |
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning |
| Išmaniosios funkcijos | scene change detection,audio exception detection,defocus detection,loitering detection,people gathering detection,fast moving detection,parking detection, unattended baggage detection,object removal detection |
Bendrieji duomenys
| Rasos šalinimas | Yes |
| Matmenys | 326.3 mm × 113.0 mm × 88.5 mm (12.85″ × 4.45″ × 3.48″) |
| Pagrindinės funkcijos | Heartbeat,anti-banding,one-key reset,mirror,password protection,flash log |
| Šildytuvas | Yes |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Medžiaga | Aluminum alloy body |
| Pakuotės dydis | 386 mm × 156 mm × 155 mm (15.3″ × 6.2″ × 6.2″) |
| Galia | two-core terminal block,12 VDC ± 20%, 1.4 A, max. 16.8 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 17.1 W |
| Darbo sąlygos | With -H: -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing),Without -H: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Svoris | Approx. 1370 g (3 lb.) |
| Svoris su įpakavimu | Approx. 2084 g (4.59 lb.) |
Apšvietimas
| IR bangos ilgis | 850 nm |
| Išmanus papildomas apšvietimas | Yes |
| Papildomo apšvietimo diapazonas | Up to 80 m |
| Papildomo apšviešimo tipas | IR,White Light |
Nuotrauka
| Dienos/nakties perjungiklis | Day,Night,Auto,Schedule,Alarm Trigger |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Nuotraukos parametrų keitiklis | Yes |
| Vaizdo nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
| Vaizdo stabilizavimas | EIS |
| Nuotraukos perdanga | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Privatumo kaukė | 8 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
Sąsaja
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Garsas | 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Integruotas mikrofonas | 1 built-in microphone |
| Integruotas garsiakalbis | 1 built-in speaker,Max. power consumption: 1.5 W |
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Išėjimo galia | 12 VDC, max. 100 mA |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Perkrovimo mygtukas | Yes |
Objektyvas
| Diafragma | F1.0 |
| Focal Length & FOV | 2.8 mm, horizontal FOV 104°, vertical FOV 54°, diagonal FOV 127°4 mm, horizontal FOV 89°, vertical FOV 46°, diagonal FOV 108° |
| Rainelės tipas | Fixed |
Tinklas
| API | ISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Klientas | iVMS-4200,Hik-Connect,Hik-Central |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, AES128/256 |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| Naudotojas/prievadas | Up to 32 users3 user levels: administrator, operator, and user |
| Naršyklė | Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Vaizdas
| Bitų dažnio valdymas | CBR,VBR |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Pagrindinis srautas | 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480) |
| Trečias srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Vaizdo bitų dažnis | 32 Kbps to 8 Mbps |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 |
| Svoris | 1,98 kg |
|---|---|
