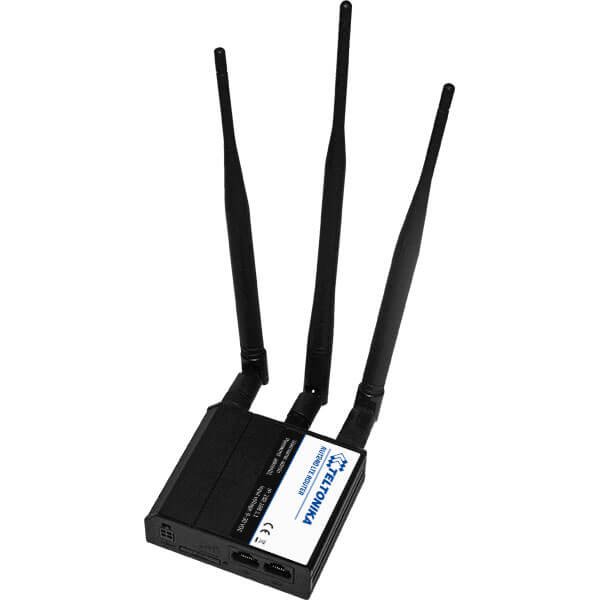

Maršrutizatorius Teltonika RUT240
170,74€(Kaina be PVM)206,60€(Kaina su PVM)
- Industrinis LTE maršrutizatorius profesionaliam naudojimui
- Palaikomi LTE Cat 4 iki 150 Mbps
- Automatinis perjungimas prie galimo atsarginio ryšio
- Belaidis prieigos taškas ir saitvietės funkcija
- Skaitmeninė įvestis/išvestis nuotoliniam stebėjimui ir kontroliavimui
| RYŠYS | |
|---|---|
| Mobilus modulis | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps. |
| Statusas | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
| Sujungimas | Direct connection (bridge) between mobile ISP and device on LAN |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
| Baltas/juodas sąrašas (pasirenkama) | Operator black/white list |
| Sudėtinis PDN (pasirenkama) | Possibility to use different PDNs for multiple network access and services |
| BELAIDIS RYŠYS | |
| Belaidžio ryšio rėžimas | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| WiFi | WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter |
| WiFi apsauga | WPA2-Enterprise – PEAP, TLS, TTLS, AES-CCMP, TKIP, Auto Cipher modes, Client separation |
| SSID | SSID stealth mode and access control based on MAC address |
| WiFi vartotojai | up to 50 simultaneous connections |
| Viešosios interneto prieigos taškas | Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
| ETHERNET | |
| WAN | 1 x WAN (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| LAN | 1 x LAN port, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
| TINKLAS | |
| Maršrutizavimas | Static routing, Dynamic routing (Optional – BGP, OSPF v2, RIP v1/v2) |
| Tinklo protokolai | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT (optional) |
| Sujungimo stebėjimas | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Ugniasienė | Port forward, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation |
| QoS | Traffic priority queuing by source/destination, service, protocol or port |
| DDNS | Supported >25 service providers, others can be configured manually |
| Tinklo atsarginė kopija | VRRP, Mobile, Wired and WiFi WAN options, each of which can be used as backup |
| Apkrovos balansavimas | Balance your internet traffic over multiple WAN connections |
| NetSnapper (pasirenkama) | Mobile connection management, data compression VPN client (not available in standard FW) |
| SSHFS (pasirenkama) | Possibility to mount remote file system via SSH protocol (not available in standard FW) |
| APSAUGA | |
| Autentifikacija | Pre-shared key, digital certificates, X.509 certificates |
| Ugniasienė | Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
| Atakos prevencija | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| WiFi apsauga | WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes, Client separation |
| VLAN | Tag based VLAN separation |
| Mobilių duomenų kontrolė | Set up custom data limits for the SIM card |
| WEB filtravimas | Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
| Įeigos kontrolė | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| AtvirasVPN | Multiple clients and server can be running simultaneously, 12 encryption methods |
| AtviroVPN šifravimas | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| IPsec | IKEv1, IKEv2, supports up to 4x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
| GRE | GRE tunnel |
| PPTP, L2TP | Client/Server services can run simultaneously |
| STEBĖJIMAS IR VALDYMAS | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update from sever, automatic notification. |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| TR-069 (pasirenkama) | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems |
| MQTT (pasirenkama) | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| SISTEMOS CHARAKTERISTIKOS | |
| CPU | Atheros Hornet, MIPS 24Kc, 400 MHz |
| RAM | 64MB, DDR2 |
| FLASH atmintis | 16MB SPI Flash |
| PROGRAMINĖ ĮRANGA / KONFIGURACIJA | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
| FOTA | Update FW/configuration from server |
| RMS | Update FW/configuration for multiple devices |
| Nustatymų išsaugojimas | Update FW without losing current configuration |
| PROGRAMINĖS ĮRANGOS NUSTATYMAS | |
| Operacinė sistema | RutOS powered by Linux based on OpenWRT |
| Kalbos | Busybox shell, Lua, C, C++ |
| Plėtros įrankiai | GPL package with built environment provided |
| ĮVESTYS/IŠVESTYS | |
| Įvestis | 1 x Digital Input |
| Išvestis | 1 x Digital Output |
| Įvykiai | SMS, EMAIL, RMS |
| MAITINIMAS | |
| Pajungimas | 4 pin industrial DC power socket |
| Maitinimo įtampa | 9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33VDC 10us max. |
| PoE (pasyvus) | Passive PoE over spare pairs (available from HW revision 0007 and batch number 0010). Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at |
| Energijos suvartojimas | < 5 W |
| JUNGTYS | |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps |
| Statuso LED | 3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED |
| SIM | 1 x SIM slot (Mini SIM – 2FF, 2st form factor), 1.8V/3V, external SIM holder |
| Maitinimo | 4 pin DC connector with 1 x Digital input and 1 x Digital output |
| Antenų | 2 x SMA for LTE, 1 x RP-SMA for WiFi antenna connectors |
| Reset | Reset/restore to default button |
| FIZINĖ SPECIFIKACIJA | |
| Medžiaga | Aluminum housing, plastic panels |
| Išmatavimai | 83 mm x 74 mm x 25 mm (H x W x D) |
| Svoris | 125 g |
| Montavimas | Bottom and sideways DIN rail mounting slots |
| VEIKIMO SĄLYGOS | |
| Veikimo temperatūra | -40 °C to 75 °C |
| Santykinis oro drėgnumas | 10% to 90% non-condensing |
| IP apsaugos klasė | IP30 |
| MTBF | 310000 h |
| SERTIFIKATAI | |
| Reguliavimas | CE/RED, FCC (in progress), ISED (in progress), EAC, PTCRB (in progress), RoHS, WEEE |
| Operatorius | AT&T, Verizon (planned) |
| Transporto priemonė | E-mark (planned) |
| EMI ATSPARUMAS | |
| Standartai | Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN301 489-52 V1.1.0 |
| ESD | EN61000-4-2:2009 |
| RF | EN 61000-4-3:2006, A1:2008 and A2:2010 |
| EFT | EN 61000-4-4:2012 |
| Viršįtampio apsauga | EEN 61000-4-5:2006 |
| RC | EN 61000-4-6:2009 |
| DIP | EN 61000-4-11:2004 |
| RF | |
| Radio spektras | EN 300 328 V2.1.1 |
| APLINKOS TESTAVIMAS | |
| Anti-šoko /kritimo/vibracijos | IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, EN 60950-1:2006 + A1:2010 + A2:2013 + A11:2009 +A12:2011 |
| Smūgio stiprumas | IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013, EN 60950-1:2006 + A1:2010 + A2:2013 + A11:2009 +A12:2011 |
| Svoris | 0,32 kg |
|---|---|
