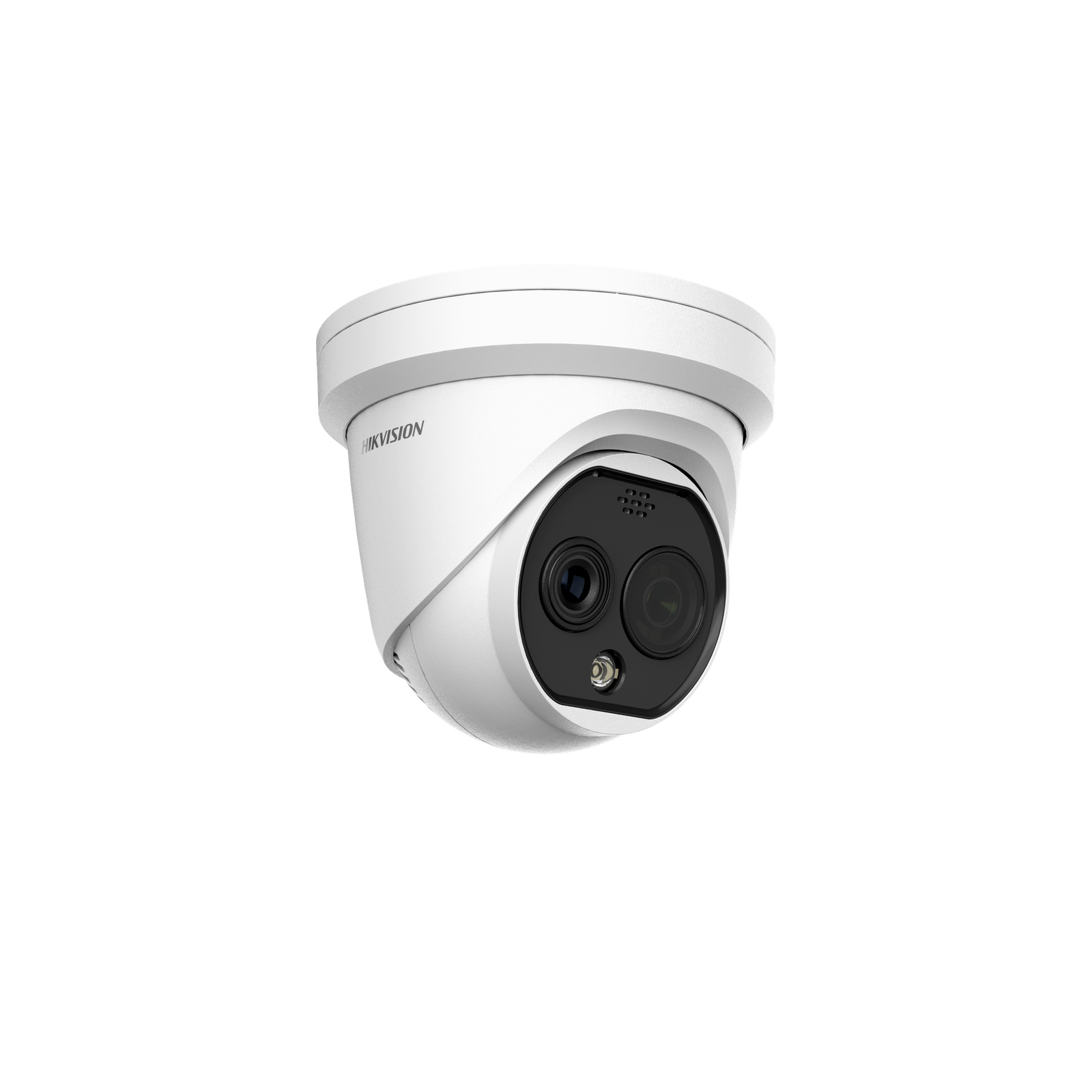

Hikvision termovizorinis ir optinis dome DS-2TD1228T-3/QA
Preliminari mėnesinė įmoka nuo 32,93€ / 60 mėn.
998,71€(Kaina be PVM)1.208,44€(Kaina su PVM)
| Termovizorinė & optinė tinklo dome kamera | |
| Termovizorinis modulis: 256×192 | |
| Optinis modulis su 4 MP raiška | |
| NETD mažesnis nei 40 mk (@25° C, F#=1.0) | |
| IR iki 15m | |
| Garso įvestis/išvestis | |
| Alarm įvestis/išvestis | |
| IP66 | |
| PoE |
Liko tik 1
Termovizorio modulis
| Sensorius | Vanadium Oxide Uncooled Focal Plane Arrays |
| Rezoliucija | 256 x 192 |
| Taškinis žingsnis | 12 μm |
| Spektrinis diapazonas | 8 μm to 14 μm |
| NETD | ≤ 40 mK (@25° C,F# = 1.0) |
| FOV | 3.6 mm |
| IFOV | 3.33 mrad |
| Diafragama | F1.0 |
| FOV | 50.0° × 37.3° (H × V) |
| Minimali fokusavimo distancija | 0.5 m |
| Skaitmeninis priartinimas | ×2, ×4 |
Optinis modulis
| Sensorius | 1/2.7″ Progressive Scan CMOS |
| Rezoliucija | 2688 × 1520 |
| Min. apšvietimas | 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR |
| FOV | 84.0° ×43.1° (H × V) |
| FOV | 4.3 mm |
| Užrakto greitis | 1 s to 1/100,000 s |
| Baltos spalvos balansas | MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light |
| Day & Night Mode | IR Cut Filter with Auto Switch |
| WDR | 120 dB |
| Diafragama | F 1.6 |
Vaizdo efektas
| Dviejų spektrų vaizdo sintezė | Display the details of optical channel on thermal channel |
| Picture in Picture | Display partial image of thermal channel on the full screen of optical channel |
| Tikslinė spalva | Yes. Supported in white hot and black hot mode. |
Apšvietimas
| IR distancija | Up to 15 m |
| IR intensyvumas ir kampas | Automatically adjusted |
Garsinis ir vaizdinis signalas
| Baltos šviesos diapazonas | Up to 30 m |
| Vaizdinė signalizacija | Yes. White light alarm with adjustable flashing frequencies |
| Garso signalizacija | Yes, for three types of audible alarm (VCA and Temperature Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types) |
Išmanioji funkcija
| VCA | 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperatūros matavimas | 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperatūros diapazonas | -20°C to 550°C (-4°F to 1022°F); |
| Temperatūros tikslumas | Max (±2°C, ±2 %) |
| Pagrindinės funkcijos | Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter |
Vaizdas ir garsas
| Pagrindinis srautas | Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240) |
| Vaizdo suspaudimas | Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG |
| Garso suspaudimas | G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
Internetas
| Protokolai | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS |
| Vidinė atmintis | MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| API | ISAPI, HIKVISION SDK, ISUP,，and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G) |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| Saugumas | User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Klientas | iVMS-4200, Hik-Connect |
Sąsaja
| Signalizacijos įvestis | 1, alarm input (0-5 VDC) |
| Signalizacijos išvestis | 1, alarm output (alarm response actions configurable) |
| Alarm Action | SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Garso įvestis | 1, 3.5 mm Mic in/Line in interface Line input: 2 – 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Garso išvestis | Linear level, impedance: 600 Ω |
| Bendravimo sąsaja | 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex) |
Pagrindinis
| Kalbos | 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Maitinimas | 12 VDC ± 25%, φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Energijos sunaudojimas | 12 VDC ± 25%: 0.5 A, Max 6 W PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W |
| Darbinė temperatūra / drėgmė | Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less |
| Apsaugos lygis | IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection |
| Dydis | 138.3 mm × 138.3 mm × 123.1 mm (5.45″ × 5.45″ × 4.85″) |
| Svoris | 940 g (2.07 lb) |
Aptikimo diapazino / išmaniųjų funkcijų diapazonas
| VCA diapazonas žmonėms | 24 m |
| VCA transporto priemonėms | 72 m |
| Svoris | 0,977 kg |
|---|---|
