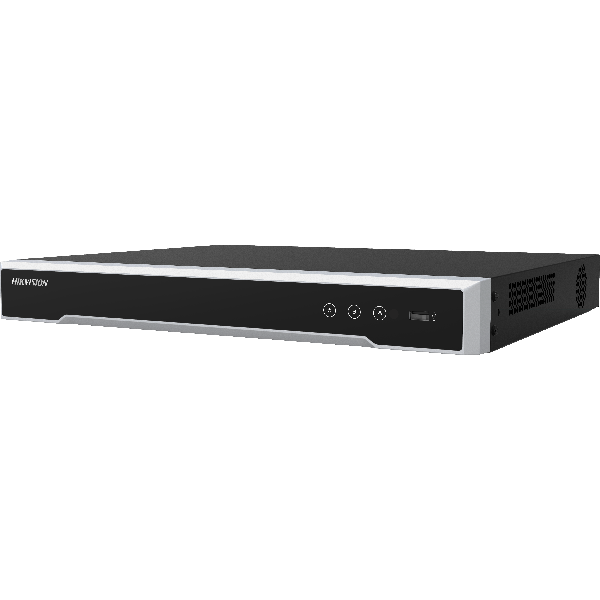

Model |
DS-7608NI-I2/8P |
DS-7616NI-I2/16P |
|
Video/Audio input |
IP video input |
8-ch |
16-ch |
Up to 12 MP resolution |
|||
Two-way audio |
1-ch, RCA (2.0 Vp-p, 1kΩ) |
||
Network |
Incoming bandwidth |
80 Mbps |
160 Mbps |
Outgoing bandwidth |
256 Mbps |
||
Remote connection |
128 |
||
Video/Audio output |
Recording resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF |
|
HDMI output resolution |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
||
VGA output resolution |
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
||
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
||
Decoding |
Decoding format |
H.265/H.264/H.264+/MPEG4 |
|
Live view / Playback resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF /CIF/QCIF |
||
Synchronous playback |
8-ch |
16-ch |
|
Capability |
4-ch @ 4K, or 16-ch @ 1080p |
||
Hard disk |
SATA |
2 SATA interfaces for 2HDDs |
|
Capacity |
Up to 6TB capacity for each HDD |
||
External interface |
Network interface |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
USB interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
||
Alarm in/out |
4/1 |
||
POE Interface (for /P series NVR only) |
Interface |
8 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces |
Power |
≤120W |
≤200W |
|
Supported standard |
IEEE 802.3 af/at |
||
General |
Power supply |
100 to 240 VAC, 50 to 60 Hz |
|
Power |
≤180 W |
≤280 W |
|
Consumption (without hard disk) |
≤15 W (without enabling PoE) |
||
Working temperature |
-10 to +55ºC (14 to 131ºF) |
||
Working humidity |
10 to 90 % |
||
Chassis |
380mm chassis |
||
Dimensions(W × D × H) |
380 × 290 × 45mm (15.0″ × 11.4″ × 1.8″) |
||
Weight(without hard disk) |
≤ 3 Kg (6.6 lb) |
