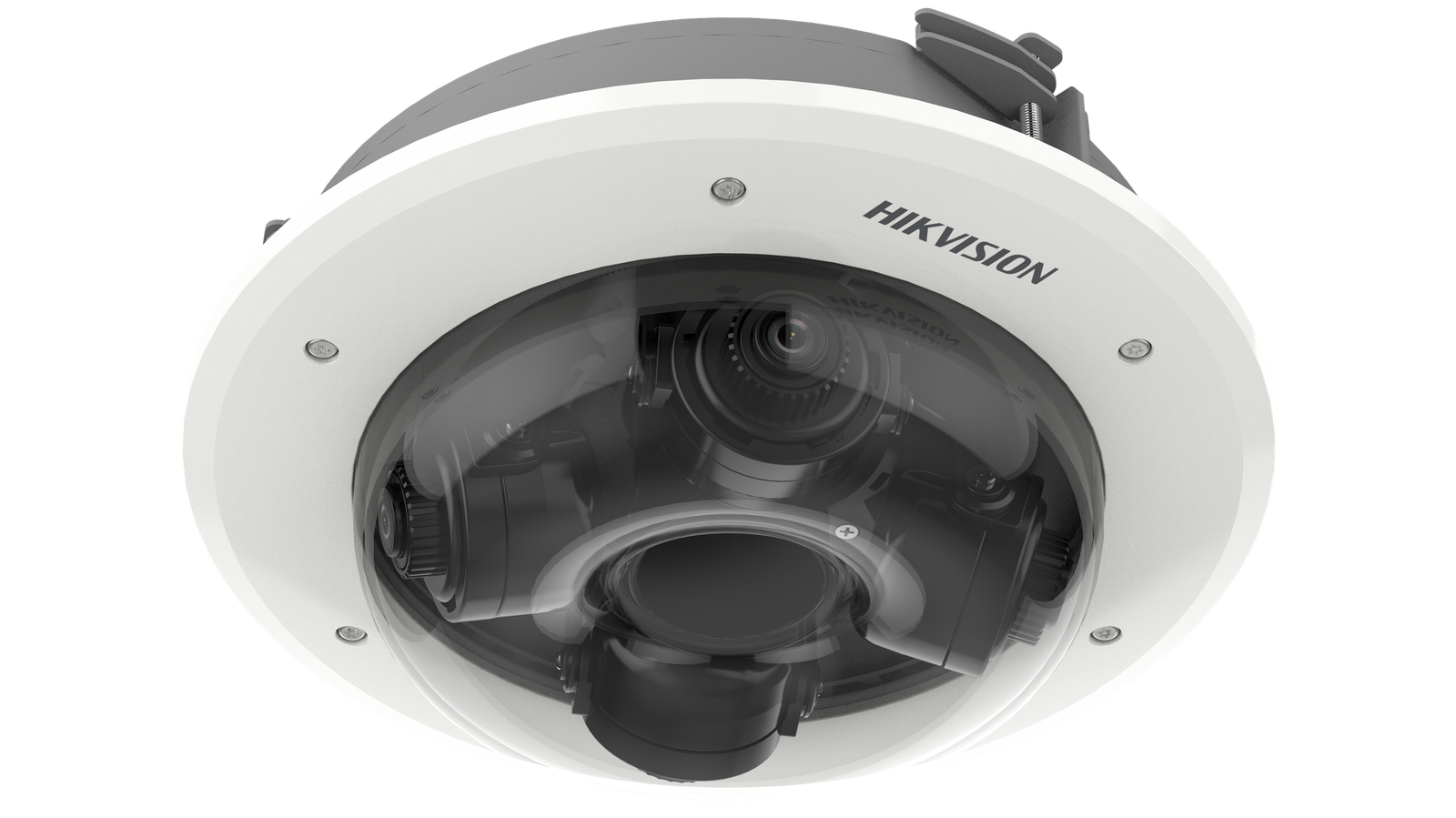

Name: Hikvision PanoVu DS-2CD6D54G1-ZS/RC
SKU: KIPDS2CD6D54G1ZSRC
Price: 2164.05 EUR
Availability: OutOfStock

Hikvision PanoVu DS-2CD6D54G1-ZS/RC

1.788,47€(Kaina be PVM)2.164,05€(Kaina su PVM)

Neturime

Kamera
Sensorius1/2.7″ Progressive Scan CMOS
Min. apšvietimas
Color: 0.0125 Lux @(F1.9, AGC ON)

B/W: 0.0025 Lux @(F1.9, AGC ON), 0 Lux with IR
Užrakto greitis1 s to 1/100,000 s
Lėtas užsisklendimasYes
Diena &naktisIR cut filter
Kampo pasirinkimasPan: -60° to 60°, tilt: 10° to 90°, rotate: 0° to 350°
WDR120 dB

Lęšiai
DiafragmaF1.9
FokusavimasManual, semi-auto
FOVHorizontal FOV 100° to 49°, vertical FOV 72° to 36.4°, diagonal FOV 134.4° to 61.4°
Lęšių montavimasØ14
Lęšių tipasVarifocal lens, 2.8 to 8 mm

Vaizdo įrašai
Maks. raiška2560 × 1920
Vaizdo srautas3 defined streams
Pagrindinis srautas
50 Hz: 25 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
Pagalbinis srautas
50 Hz: 25 fps (704 × 576, 640 × 480)

60 Hz: 24 fps (704 × 480, 640 × 480)
Tretinis srautas
50 Hz: 6 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

60 Hz: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Vaizdo įrašų suspaudimas
Main stream: H.265+/H.265/H.264+/H.264

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264
H.264 tipasBaseline Profile/Main Profile/High Profile
H.265 tipasMain Profile
Vaizdo bitų greitis32 Kbps to 16 Mbps
SVCH.264 encoding
H.264+Main stream support
H.265+Main stream support

Garsas
Garso suspaudimasWith -S model: G.711/G.722.1/G.726/MP2L2/PCM
Garso bitų greitisWith -S model: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
Aplinkos triukšmo filtravimasWith -S model: Yes
Garso pavyzdžių ėmimo gretisWith -S model: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Išmanios funkcijos
Išmanūs įvykiai
Line crossing detection, up to 4 lines configurable

Intrusion detection, up to 4 regions configurable

Region entrance detection, up to 4 regions configurable

Region exiting detection, up to 4 regions configurable

Unattended baggage detection, up to 4 regions configurable

Object removal detection, up to 4 regions configurable

Scene change detection, audio exception detection(-S), defocus detection
Paprasti įvykiaiMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
ROI4 fixed regions and dynamic face tracking for each stream
Sujungimo metodai
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm

output, trigger recording, trigger capture

Nuotraukos
Nuotraukų gerinimasBLC, HLC, 3D DNR, Defog, EIS
Nuotraukų nustatymai
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are

adjustable by client software or web browser
Nuotraukų karpymasYes
Dienos/nakties jungiklisDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Nuotraukų perdengimasLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
SNR≥52 dB

Tinklas
Tinklo saugyklamicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Saugumas
Password protection, complicated password, HTTPS encryption, 802.1X authentication

(EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/

HTTPS, WSSE and digest authentication for Open Network Video Interface
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
Naudotojas/transliuotojasUp to 32 users. 3 user levels: administrator, operator and user
Programinė įrangaiVMS-4200, Hik-Connect, Hik-Central
Interneto naršyklėIE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11

Sąsajos
Sujungimo sąsaja
Without -S model:

1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232

With -S model:

1 RJ45 10M/100M/1000M Ethernet port; built-in RS-232

1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self- adaptive)
GarsasWith -S model: 1 input (line in), 1 output (line out), 3.5 mm three-contact
Įspėjamasis signalasWith -S model: 2 inputs, 2 outputs (max. 24 VDC, 1 A)
Vidinė saugyklaBuilt-in microSD/SDHC/SDXC slot, up to 128 GB

Patvirtinimai
EMC
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,

EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:

2015, KN 35: 2015
Saugumas
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am

1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemija2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ApsaugaIK10 (IEC 62262:2002), IP67 (IEC 60529-2013)

Pagrindinės funkcijos
Programinės-aparatinės įrangos atkūrimasV5.5.32
Internetinio meniu kalbos
32 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,

French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,

Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Pagrindinės funkcijosAnti- flicker, 3 streams, heartbeat, mirror, privacy masks
AtkūrimasReset via reset button on camera body, web browser and client software
Paleidimo ir veikimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Laikymo sąlygos -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Energijos šaltinis
12 VDC± 20%, reverse polarity protection; three-core terminal block

24 VAC ± 20%;

PoE (802.3at, class 4)
Energijos suvartojimas ir srovė
12 VDC, 1.8 A, 22 W

24 VAC, 1.4 A, 22 W

PoE (802.3at, 42.5 to 57 VDC), 0.44 to 0.33 A, 19 W, class 4
MedžiagaBubble & IR cover: plastic, camera: metal
Matmenys
Camera: Ø250 × 114.9 mm (9.8″ × 4.5″)

With package: 336 × 261 × 293 mm (13.2″ × 10.3″ × 11.5″)
Svoris
Camera: 2.2 kg (4.9 lb.)

With package: 3.9 kg (8.6 lb.)
